Product DescriptionCompany Info.<>
- Model:
- CS-C368
- Processing customization:
- Yes
- Rated voltage:
- 380V
- Power supply type:
- Charging power supply
- Inlet line diameter:
- 13 mm
- Outgoing line diameter:
- 12 mm
- Overall dimension:
- 1150 mm
- Use:
- Stainless steel wire drawing machine
- Applicable scope:
- stainless steel
- Weight:
- 650 kg
Precision stainless steel wire drawing machine, no chamfer, no collapse angle, flatness up to 0.03mm, mainly for: floor drain, glass clip, lock panel, mobile phone frame, mechanical accessories and other products with high surface flatness requirements surface wire drawing, grinding treatment. Water mill can be Du J burn S injury, yellowing, etc., so that drawing lines more clear, brightness better H. Fully automatic operation, with automatic swing, is an indispensable automation equipment for high-quality Z plane wire drawing products. Factory direct X pin, provide free proofing, can see the equipment, test machine.

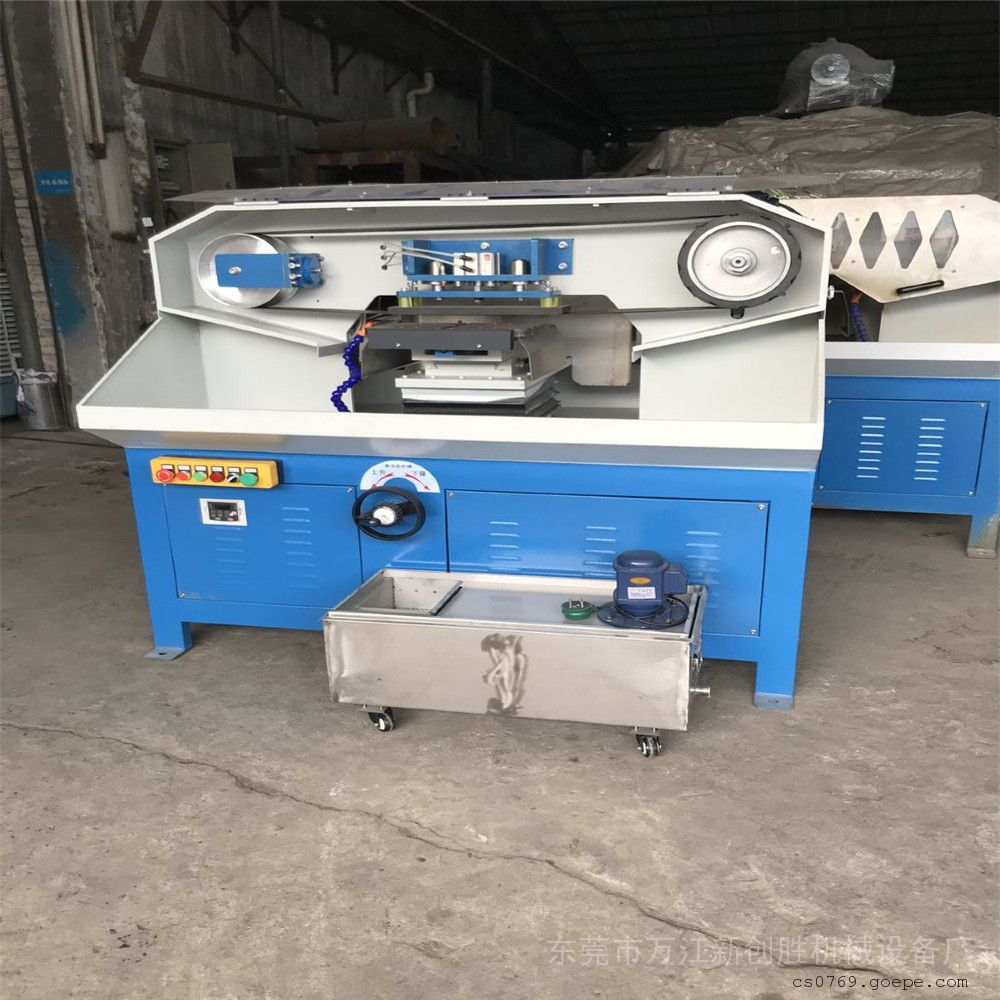

Model: CS-C368
Name: Two-wheel plane wire drawing machine
Total power: 6.636KW
Belt motor power: 5.5KW-4 poles
Belt linear speed: 18.84m/s
Bench size: 300*200mm(L * W)
Table feed stroke: 0-200mm
Table lifting height: 80mm
Processing range: 300*100*80 (large)
Belt linear speed: 18.84m/s
Swing frequency: 142r/min
Swing range: 5-30mm
Abrasive belt specification: 3000*100mm
Pump specification: 125W lift 3.3m
Working power supply: 380V 50HZ
Appearance size: 1600*1000* 1400mm (L * W * H)
Features: Flat matte suitable for floor drain, lock panel, glass clip, cell phone keys and other products. Our company adopts precision linear guide rail, which can not only ensure flatness, but also ensure size accuracy. Plus du has automatic timing and time-controlled grinding. Unique in terms of labor reduction and precision. It is the first choice for customers who require high precision and high surface quality. Deeply won the trust and support of customers.
There are pictures and truth. The following are some sample pictures that our company has drawn for customers:
